18-4 UNSHIELDED SPEAKER GRAY

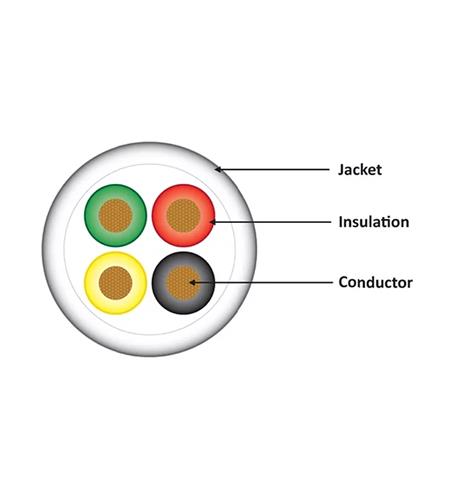

- CONSTRUCTION: 18 AWG 7 STRAND BARE COPPER 4 CONDUCTORS TWISTED AND JACKETED
- INSULATION: SR-PVC
- COLOR CODE: BLACK, RED, WHITE, GREEN
- SHIELD/DRAIN: UNSHIELDED
- ASSEMBLY: 4 CONDUCTORS TWISTED AND JACKETED
- JACKET: PVC
- DIAMETER: 0.182* Nominal
- UL: CMR OR CL3R OR FPLR
- FOR PLENUM RATED VERSION GO TO SPEC. NO. P40031
- CAPACITANCE: 25.4 pF/ft Nom.
- VEL OF PROP: 55%
- IMPEDANCE: 73 OHMS
- RESISTANCE: 6.92 OHMS D.C. PER 1000 FT @ 68 DEG. F MAXIMUM
- TEMP/VOLTAGE: 75C / 300V (UP TO 300V ; POWER-LIMITED SYSTEMS PER NEC ART. 725 OR 800)
UPC: WAV-CC1804URGY4
Manufacturer: Wavenet
PartNumber: WAV-CC1804URGY4
