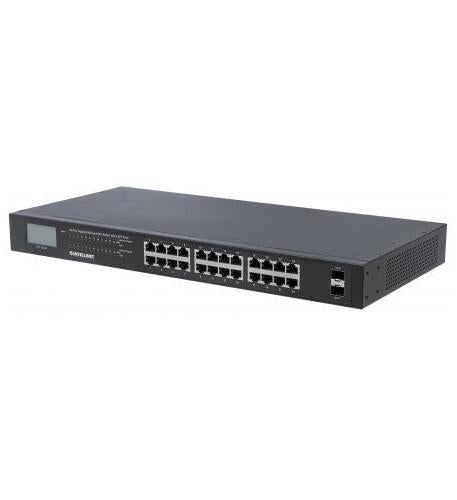

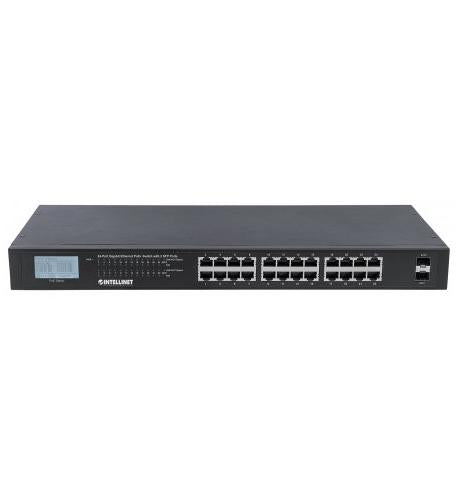

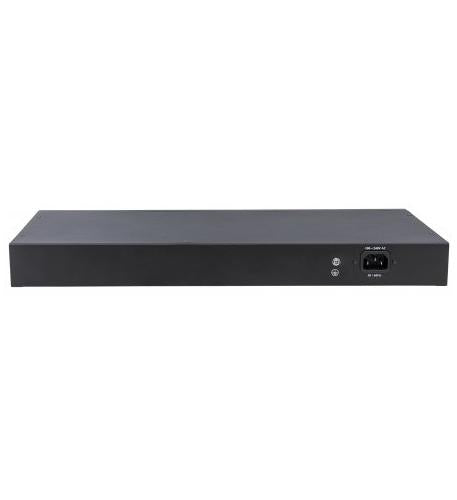

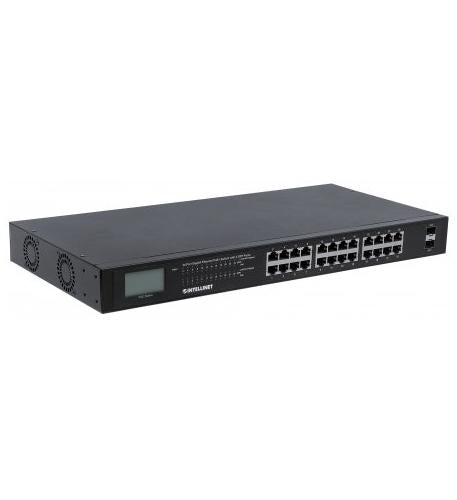

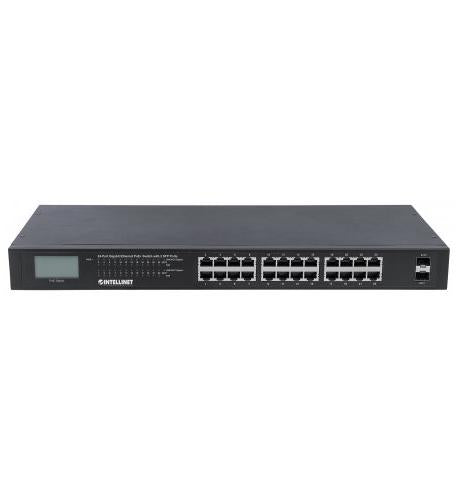

24-Port Gigabit Ethernet PoEplus Switch

- Provides power and data connection for up to 24 PoE network devices
- Saves time and money by delivering data and power via existing network cables
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds

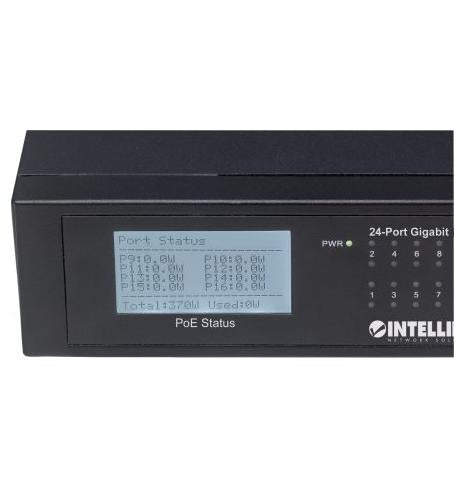

- LCD display for easy access to real-time PoE status monitoring
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
- PoE power budget of 370 watts
- Two small form-factor pluggable GBIC module slots (SFP)
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 8192 MAC address entries
- 512 kBytes buffer memory
- Two high-volume cooling fans ensure perfect ventilation
- Includes 19" rackmount brackets
UPC: ITL-561242
Manufacturer: Intellinet
PartNumber: ITL-561242
