CPU

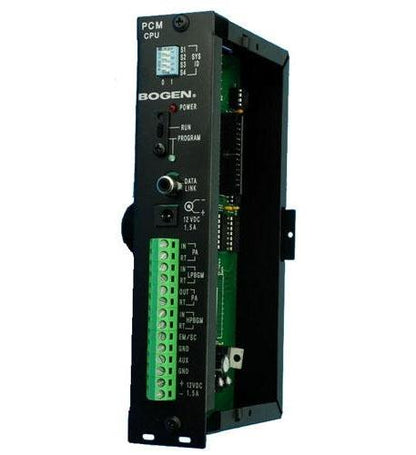

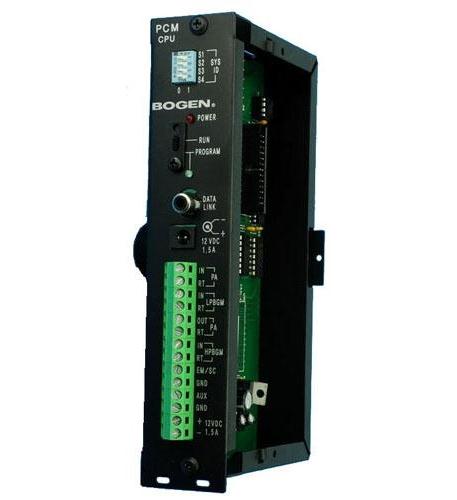

- Bogen microprocessor module for PCM zone paging system
- One required per system
- Provides power, data and audio connections for the PCM system
- Connected to other PCM modules electrically through internal cables
- Modules mechanically joined by sliding together interlocking tabs and securing with a screw on the rear panel
- Designed to be wall-mounted with modules side by side like books (oriented so that when the blue connector blocks are on bottom, PCM-TIM is far left, PCM-CPU is first from left and the first PCM-ZPM module is on the right)

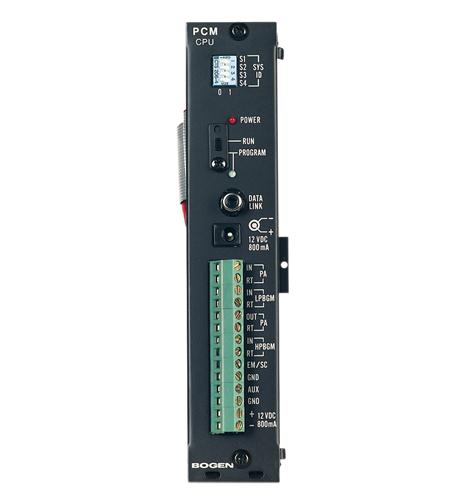

- Includes a set of dip switches that set the SYStem ID, a power LED, a program/run switch, a data link RCA jack (used to connect to satellite systems), power in jack/terminals, and audio connections for PA, low power BGM, high power BGM, emergency/shift change trigger and auxiliary contacts

BGPCMCPU
UPC: BG-PCMCPU
Manufacturer: Bogen
PartNumber: BG-PCMCPU
