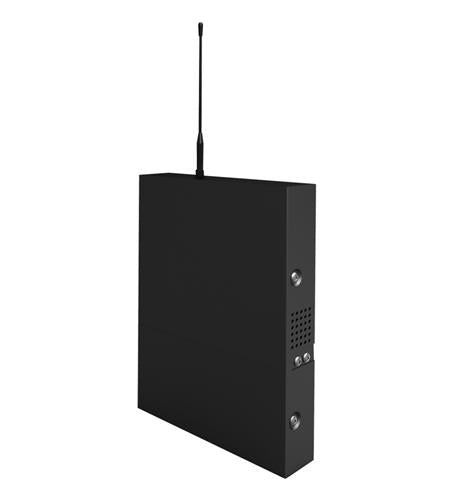

RF Clock Transmitter

- Transmits the CTG-2A RS485 clock sync data wirelessly to the CL-Series wireless clocks
- Can be configured as a wireless repeater to extend RF transmit range
- Powerful transmission range: Up to 6500 ft in open space
- Compact, slim design makes it versatile for mounting
- Can wirelessly receive and transmit data
- LEDs for indication of transmission and / or receipt of RS485 signal
- Powerful 1 Watt (30dBm) transmission
- Works with Viking*s 915 * 928 MHz frequency hopping technology
- FCC Part 14 compliance (no license required)
- Input Voltage: 90 * 230VAC 50 / 60 Hz
- Housing Dimensions: 11? x 8? x 1.7? (279mm x 203mm x 43mm)
- Antenna Length: 7? (178mm)
- Shipping Weight: 4.9 lbs (2.22 kg)
- Temperature: 32?F to 122?F (0?C to 50?C)
- Humidity: 5% to 95% non-condensing
- Input Signal: RS485 (from Viking CTG-2A)
- Operating Frequency: 915 * 928MHz frequency hopping technology
- RF Power Output: 1 Watt (30 dBm), transmits up to 6500 ft in open space
- Compliance: FCC compliant, part 15, section 15,247 (no license required)
- Housing: Smooth surface metal enclosure
- Color: Black
- Mount: Wall mount
UPC: VK-CL-RFT
Manufacturer: Viking Electronics
PartNumber: VK-CL-RFT
