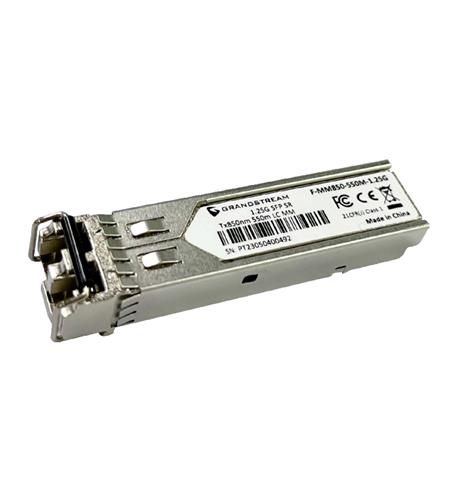

SFP Fiber Module

- Hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
- Fiber Mode: Multi-Mode Fiber
- Connector Type: Duplex LC
- DDM: 10Gbps SFP+
- Nominal Wavelength: 850nm
- Data Rate: 1.25Gbps SFP
- Max Power Consumption: 0.8W
- Transfer Distance: 50/125?m(OM2): 0.55km 62.5/125?m(OM1): 0.3km
- TX Power: -10 to -3dBm, ?3dB
- RX Power: -18 to -3dBm, ?3dB
- Operation Voltage: 3.3V?0.3V
- Environmental: Operation: 0? to 70?, humidity: 5% to 85% Storage: -40? to 85?
- Unit Weight: 15.80g
- Standards: SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6
UPC: GS-F-MM850-550M-1.25G
Manufacturer: Grandstream
PartNumber: GS-F-MM850-550M-1.25G
