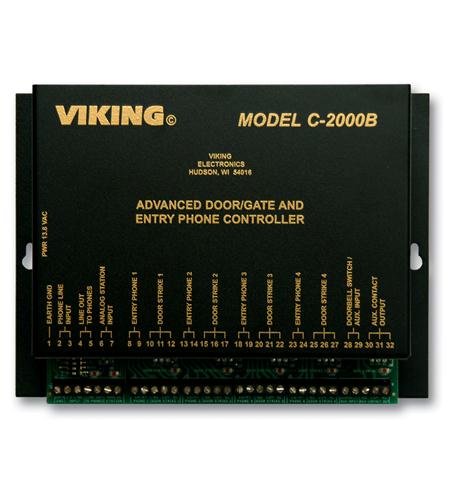

Viking C-2000B Door Entry Controller

- Viking advanced door/gate entry phone controller
- Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system
- Use with any analog touch tone phone
- Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
- Up to 6 different keyless entry codes / *one time use* keyless entry codes per entrance
- Up to 6 master keyless entry codes for use at any entrance
- Analog station mode allows the C-2000B to connect to an unused PABX station port
- Optional *Privacy Number* allows only selected visitors to call from an entry phone
- Provides *Caller ID* and *Call Waiting Caller ID*
- Produces *Call Waiting* tones
- Lighted doorbell switch input to activate entry phone call
- One set of normally open and normally closed contacts available for each entry phone
- Programmable contact activation time
- Auxiliary input to activate timed auxiliary contacts
- Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
- Environmental: 0?C to 32?C (32?F to 90?F) with 5% to 95% non-condensing humidity
- Relay Contacts: 5A @ 30VDC/250VAC
- Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
- Talk Battery: 40V DC
- REN: 0.1A
- Connections: (30) cage clamp screw terminals
VKC2000B
UPC: VK-C-2000B
Manufacturer: Viking Electronics
PartNumber: VK-C-2000B
