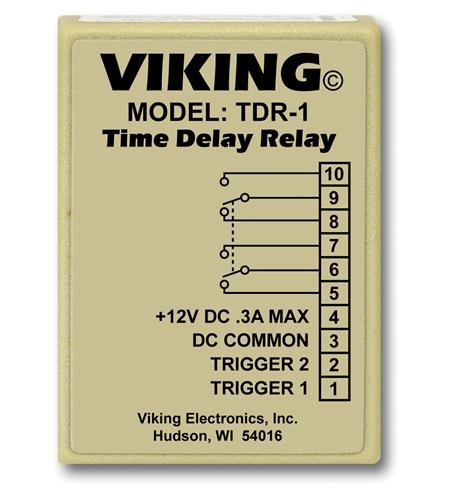

Viking Time Delay Relay

- Viking time delay relay device
- Time delay mode: programmable to produce one of 8 closure times
- Trigger 1 input can be programmed to accept either a dry contact closure or positive/negative going logic level voltage.
- Delay on Operate mode delays an input trigger by a programmed interval
- 8 Delay times available, from 1 to 30 seconds
- 1 Double pole, double throw relay output
- 8 Selectable closure times
- DIP switch programmable
- Accepts positive or negative going logic level voltage or contact
- Selectable time delay
- Screw terminal connections
- LED relay status indicator
UPC: VK-TDR-1
Manufacturer: Viking Electronics
PartNumber: VK-TDR-1
