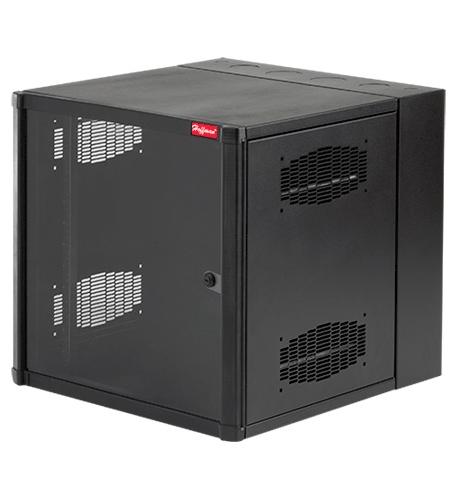

WALL MOUNT CABINET DOUBLE HINGE 19U

Front Door (window or solid steel):
Composite frame (injection molded top and bottom with extruded composite sides)
140-degree opening door
Field-reversible (left or right) hinge
Quarter-turn key lock, two keys included
Window door is scratch-resistant 1/4-in. tinted safety glass
Solid door has 16 gauge steel insert with matching black finish
Center Section:
Welded 14 gauge steel
Solid top of center sections provides protection against falling debris
Ventilated sides (to which fans can be added)
Self-latching closure connects center section to wall section
Self-alignment ramp supports center section to wall section
Heavy duty center-to-rear section hinge with quick-release self-retained hinge pin eases wall installation
Rack-Mounting Angles:
12 gauge, plated steel
EIA universal spaced 19-in. rack-mounting holes
RU marked from bottom to top
Tapped 10-32 holes, 20 mounting screws included
Rear Wall Section:
Welded 14 gauge steel
Radius corners; no sharp edges
Available with knockouts or gland plates
Raised pads for accessory mounting
Cable tie-down points for cable management
Keyhole mounting holes allow wall section to be mounted over fasteners and eases installation
Three cable-entry grommets
UPC: HOF-EWMW362436
Manufacturer: HOFFMAN PENTAIR
PartNumber: HOF-EWMW362436
